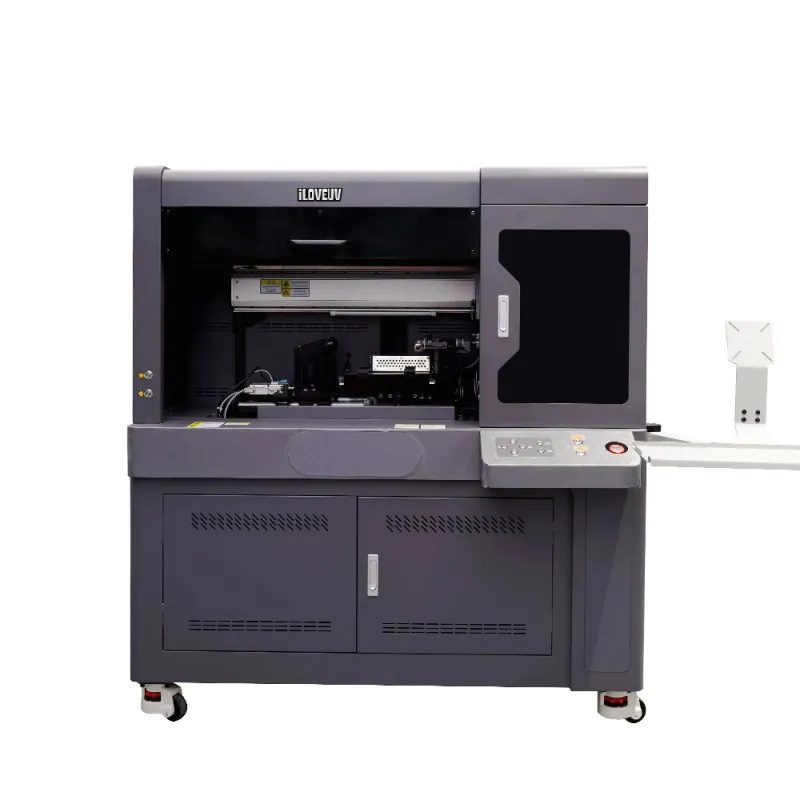

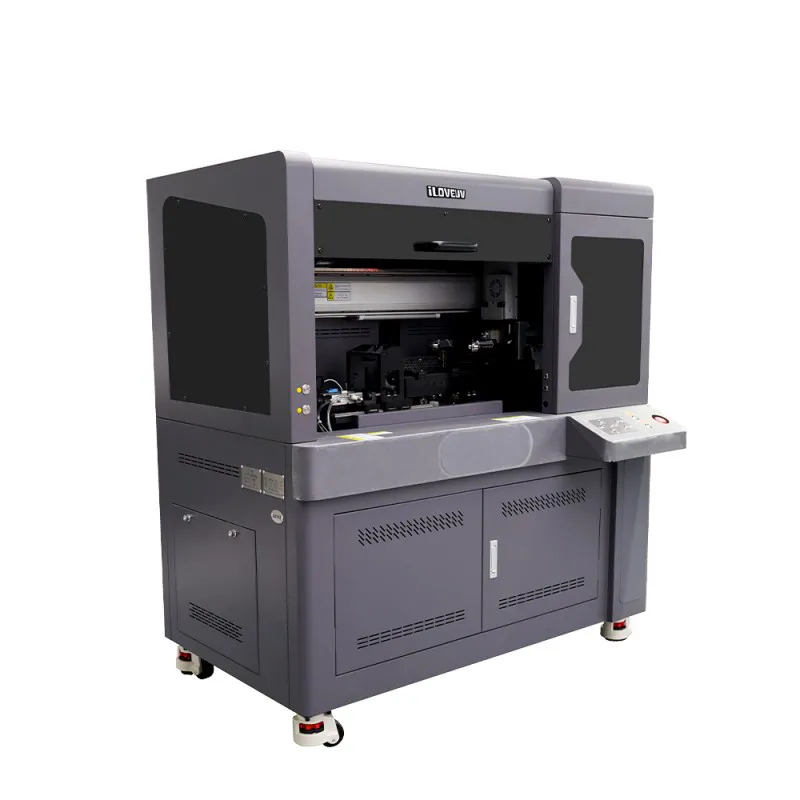

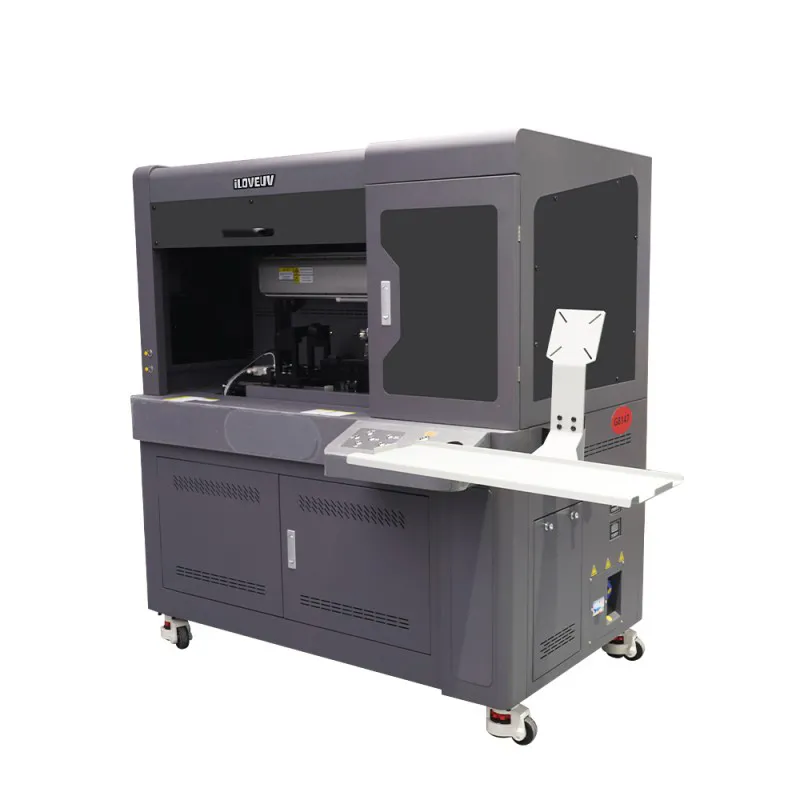

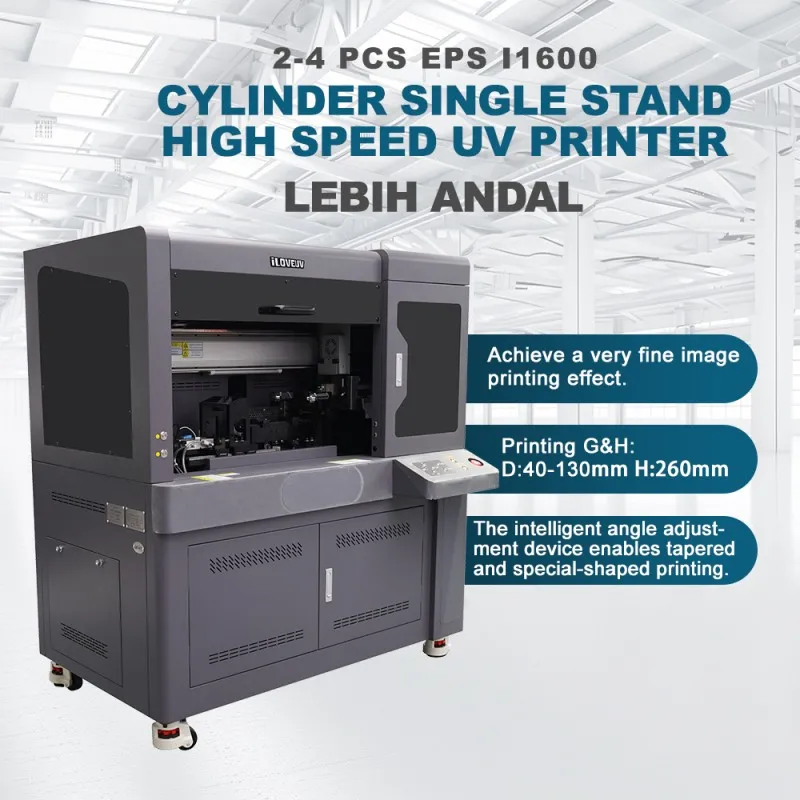

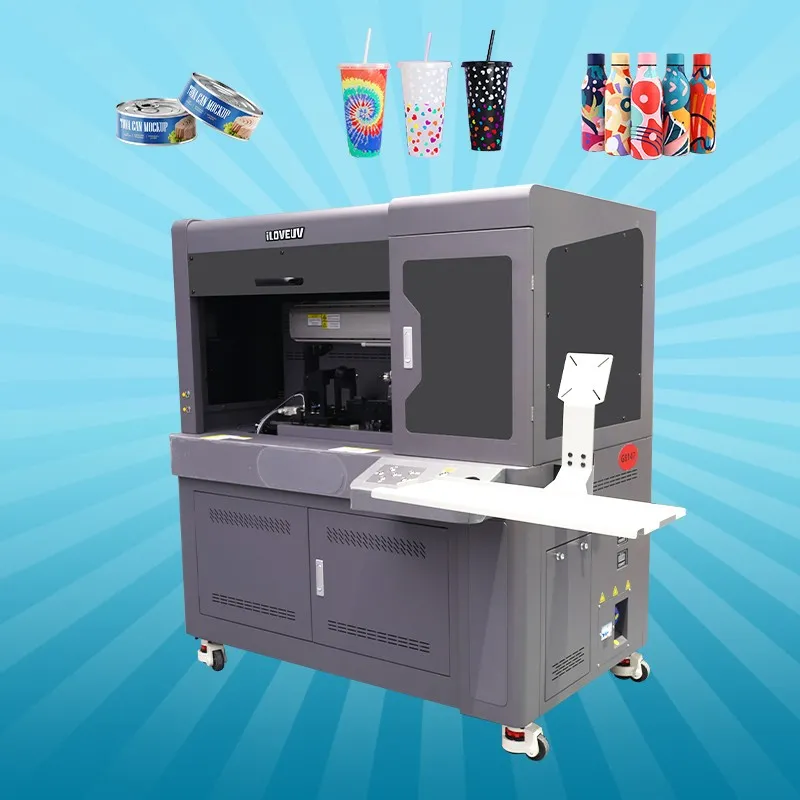

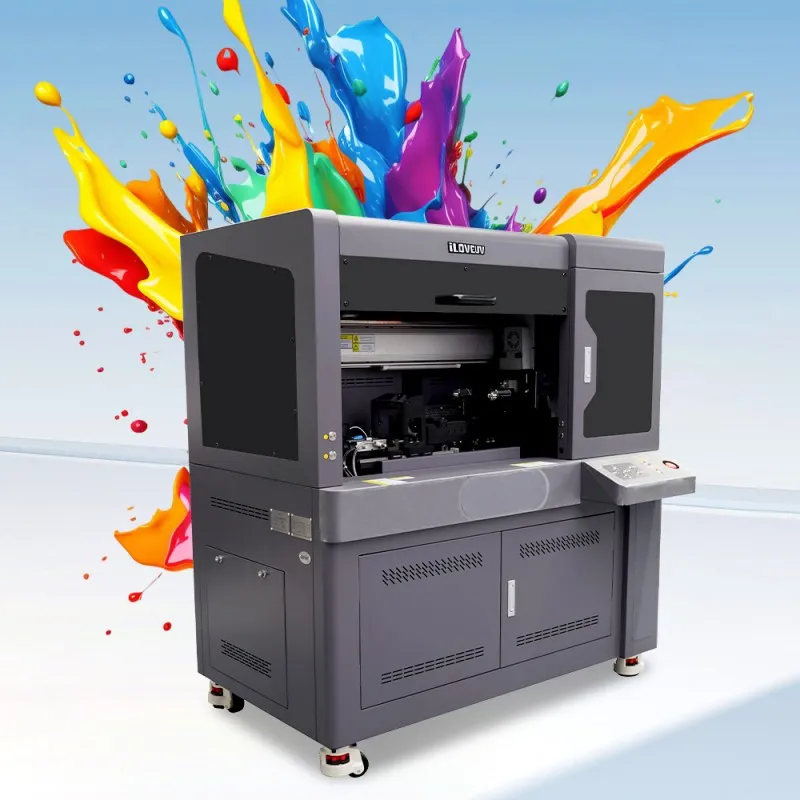

Cylinder UV Printer Single Station High Speed

1. Single-station high-speed cylindrical UV printer

2. Fast printing speed, high precision and beautiful colors

3. Meet a variety of printing solutions

4. Printing diameter size is adjustable

5. Perfect presentation of picture effects

Inquire Now Next Product

Product Specifications

Model No	IUVCB-1600
Overalldimension	150010001380mm
Printing D & H	D:40*130mm H:260mm
Nozzle Quantty Option（Pcs)	2-4pcs(Optional)
Ink Option	CMYK+W+V
Uv Ink Capacity	1000ml/bottle
Rip Software	ONYX
Curingmethod	LED Curing
Overall Weight	400kg
Automati Cleaning System	Press cleaning
Work Enmironmrnt	Operatingtemperature: 18-30°COperating humidity: 40%-60%
Access Port	USB3.0

Machine Details

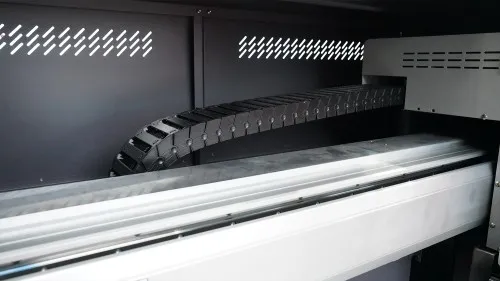

High speed silent linear guide rail

The guide rail can bear a certain degree of torque and realize high-precision linear motion under high load.

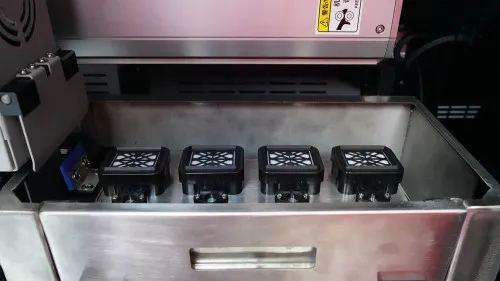

High precision machinery

Equipped with advanced intelligent autoprinthead cleaning and moisturizing device,ink well and keep the ink flow fluently.

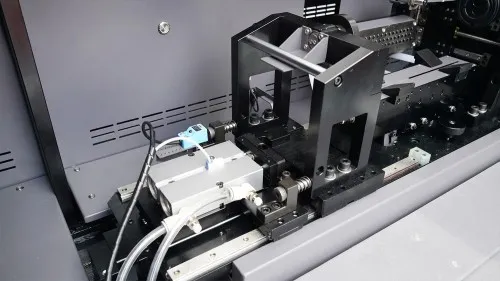

Pneumatic Pushrod

Pneumatic pushrod can quickly respond to instructions, to achieve rapid telescopic action, thereby improving the efficiency of the printer

Postive Ink supply system

Large capacity ink supply solves the problem of insufficient ink and saves manpower.

Control panel

Intelligent digital control system, convenient real-time observation,simple and quick.

UV water tank

The printing press water tank is heated and cooled by circulating water.

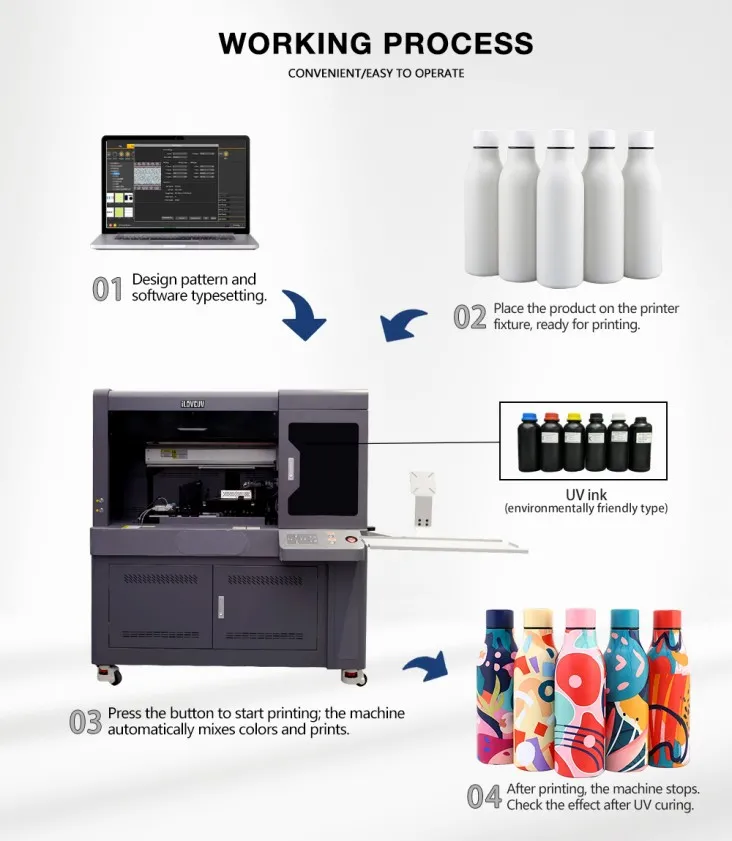

Working Process

Step 01

Design pattern and software typesetting.

Step 02

Place the product on the printer fixture, ready for printing.

Step 03

Press the button to start printing; the machine automatically mixes colors and prints.

Step 04

After printing, the machine stops. Check the effect after UV curing.
