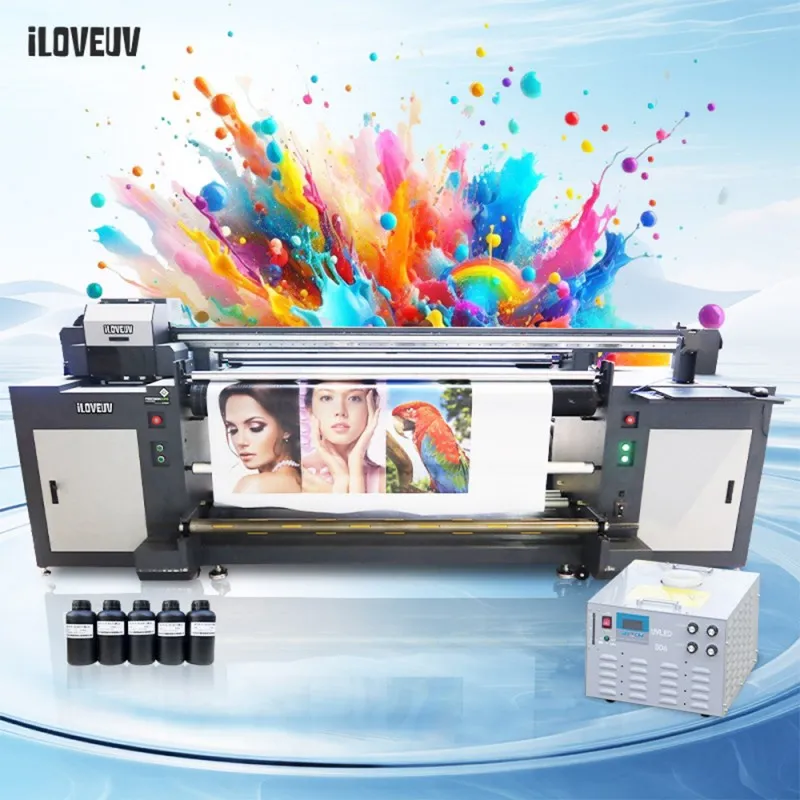

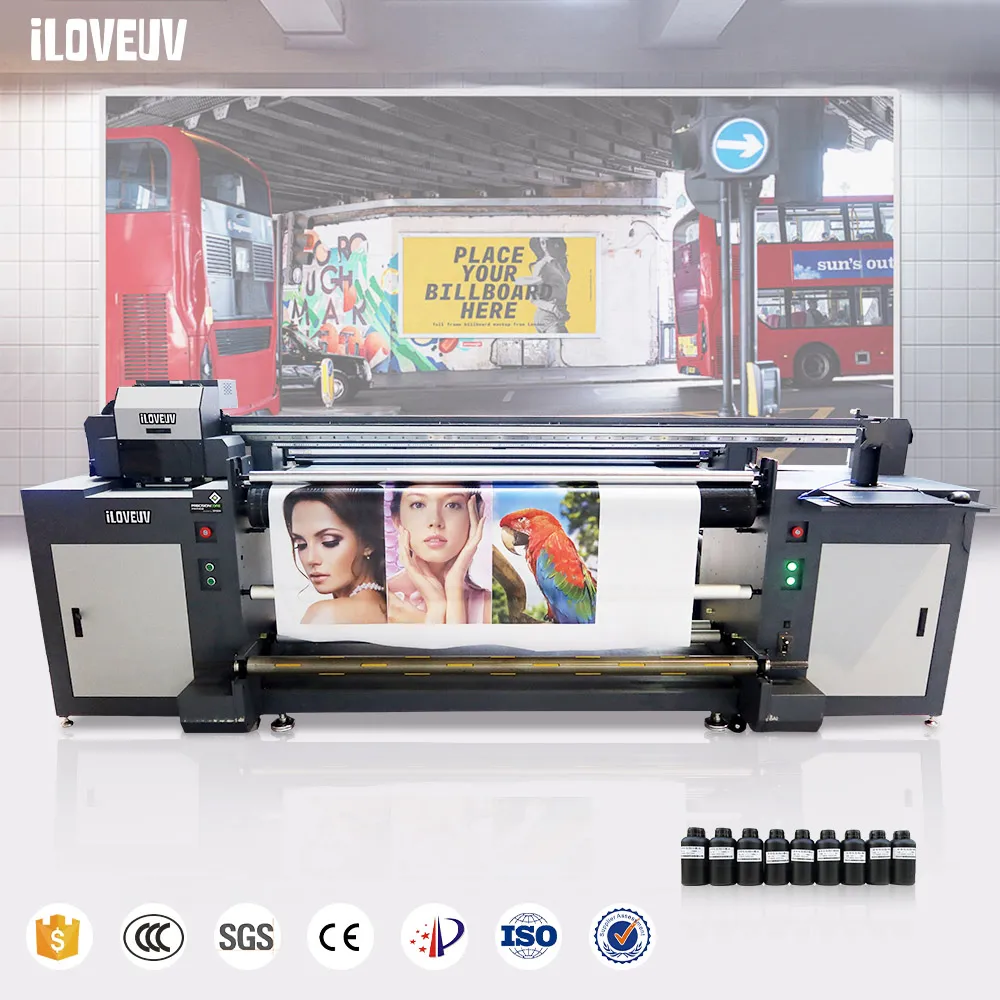

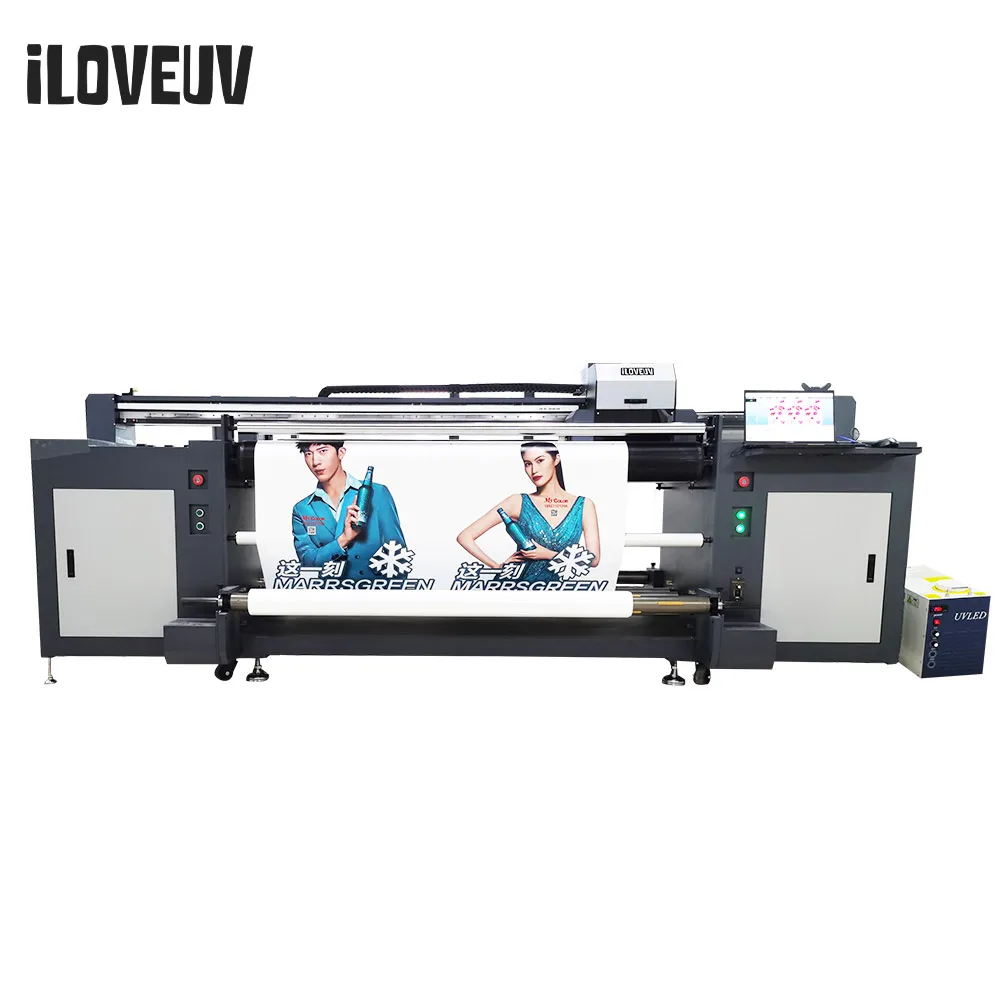

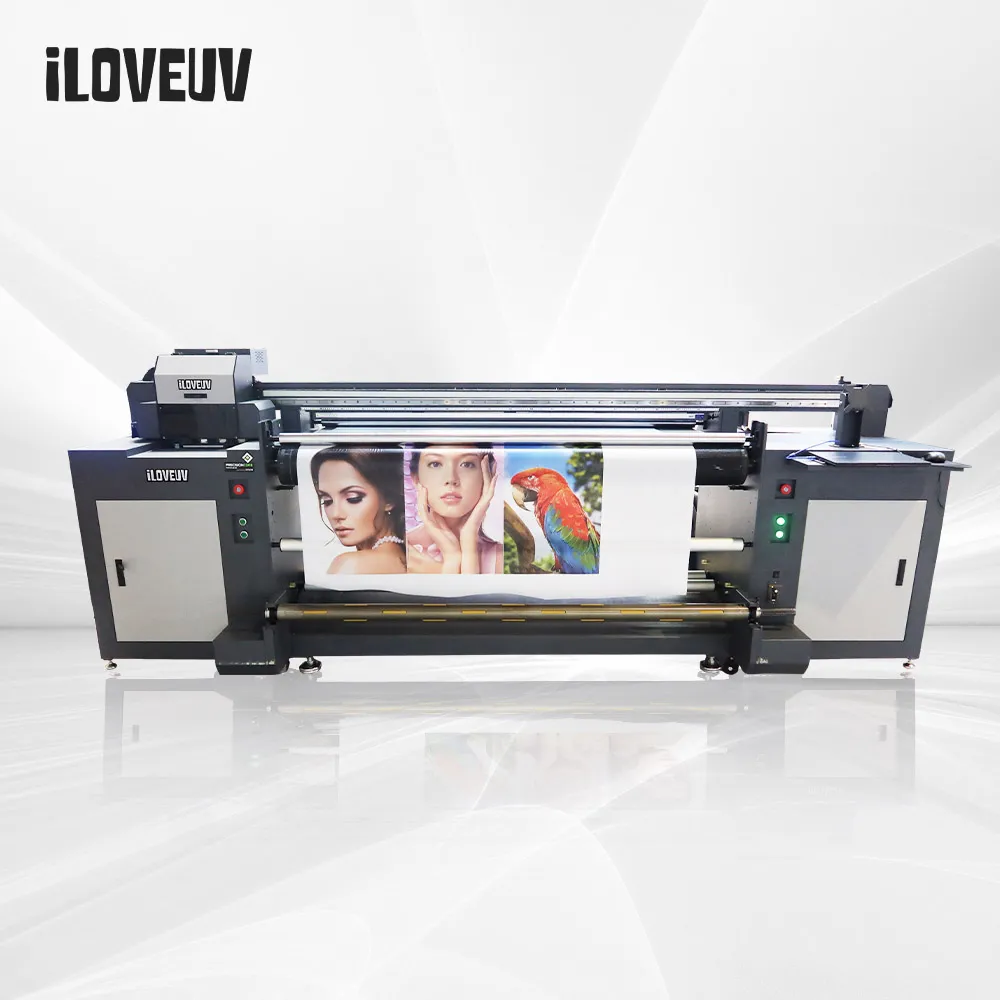

UV Hybrid Printer-IUV1800-4~6

1. XY axis AC servo motor

2. Japanese high-precision 5 arc-minute reducer

3. Full-width static elimination system

4. Fully automatic constant tension rewinding and unwinding system

5. High-quality imported mesh belt

6. Secondary ink cartridge constant temperature heating system

7. Japanese THK high-speed silent linear guide rail

8. Anti-guide belt deviation system and guide belt tension adjustment system

Inquire Now

Product Specifications

Printer Model	IUV1800-4/6
Printwidth	1850mm
Print Head	Epson i3200-U1 4/6 heads
Working Environment	Temperature:18-30°C Humidity: 40-60%
Ink Type	UV ink/Eco solvent Ink
Equipment Weight	Net weight 1250kg gross weight 1450kg
Rip Software	Maintop
Supply Voltage	AC220V
Power	4KW
Equipment Size	3573X1180X1500mm
Packing Size	3733X1428X1745mm

Machine Details

High speed silent linear guide rail

The guide rail can bear a certain degree of torque and realize high-precision linear motion under high load.

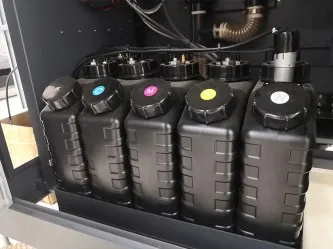

Ink supply system

Large capacity ink supply solves the problem of insufficient ink and saves manpower.

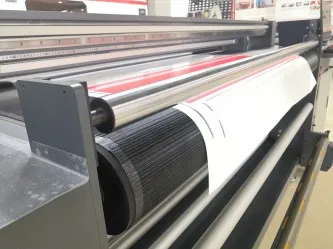

High strength conveyor belt guide device

Moves with the material during printing to increase adsorption strength, ensure smooth and synchronous printing of the material, and improve print quality

Front and rear air shaft retracting and unretracting system

Ensure that the material does not deviate during printing and ensure the flatness of the material during printing

Vacuum suction platform control system

Moves with the material during printing to increase adsorption strength, ensure smooth and synchronous printing of the material, and improve print quality.

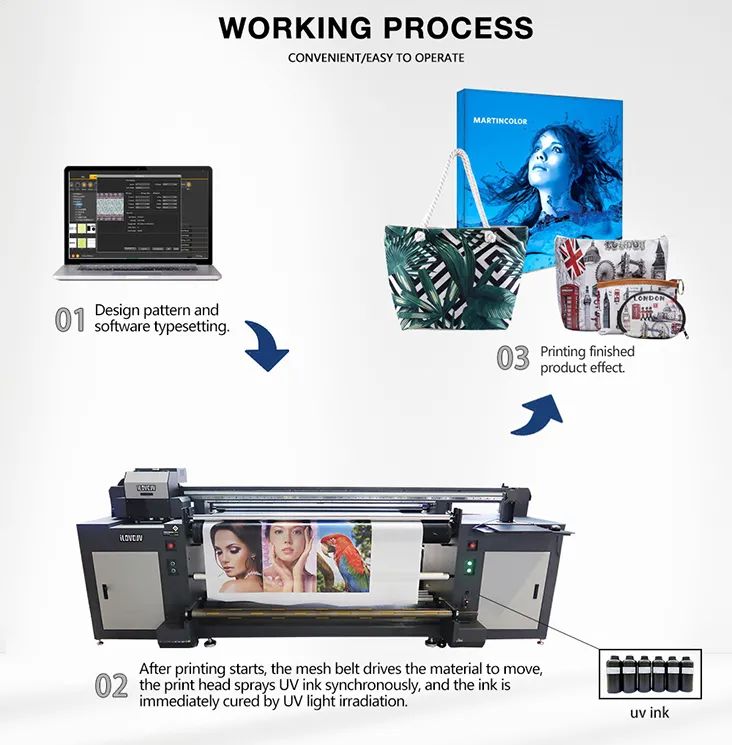

Working Process
