UV Flatbed Printer

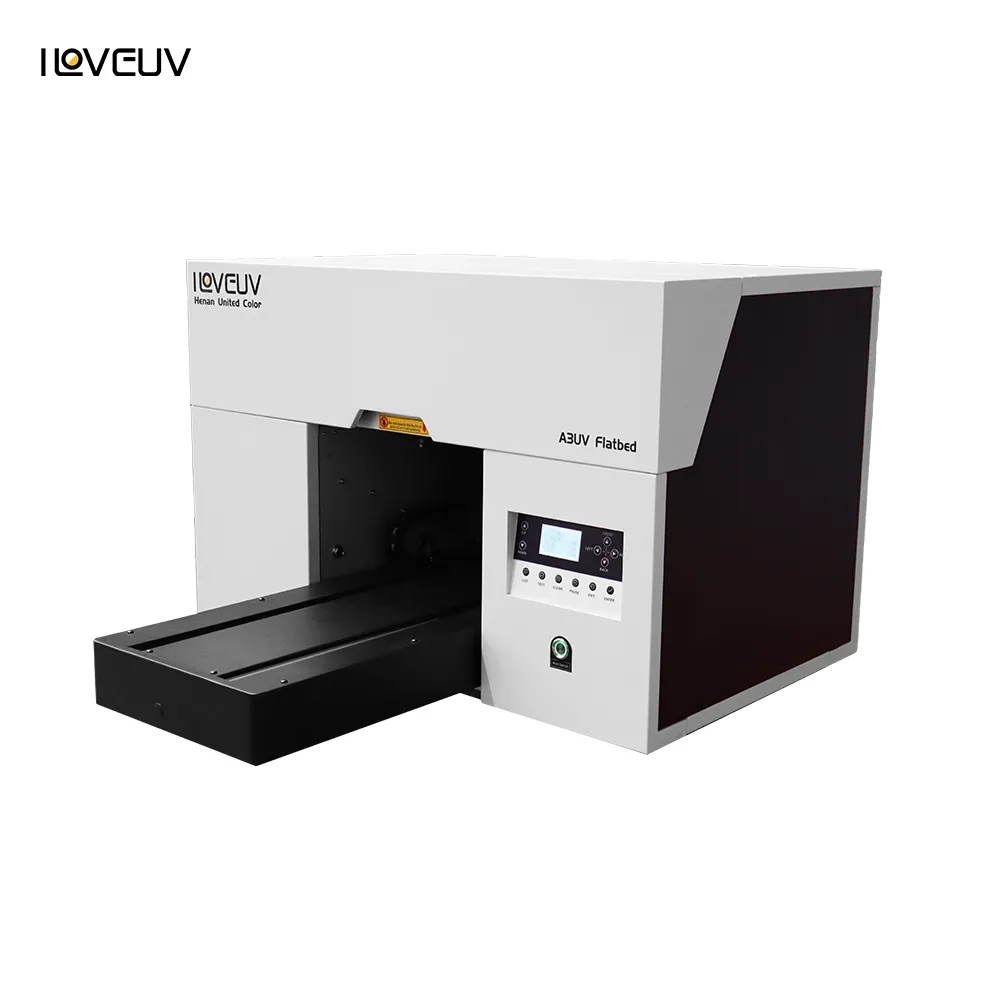

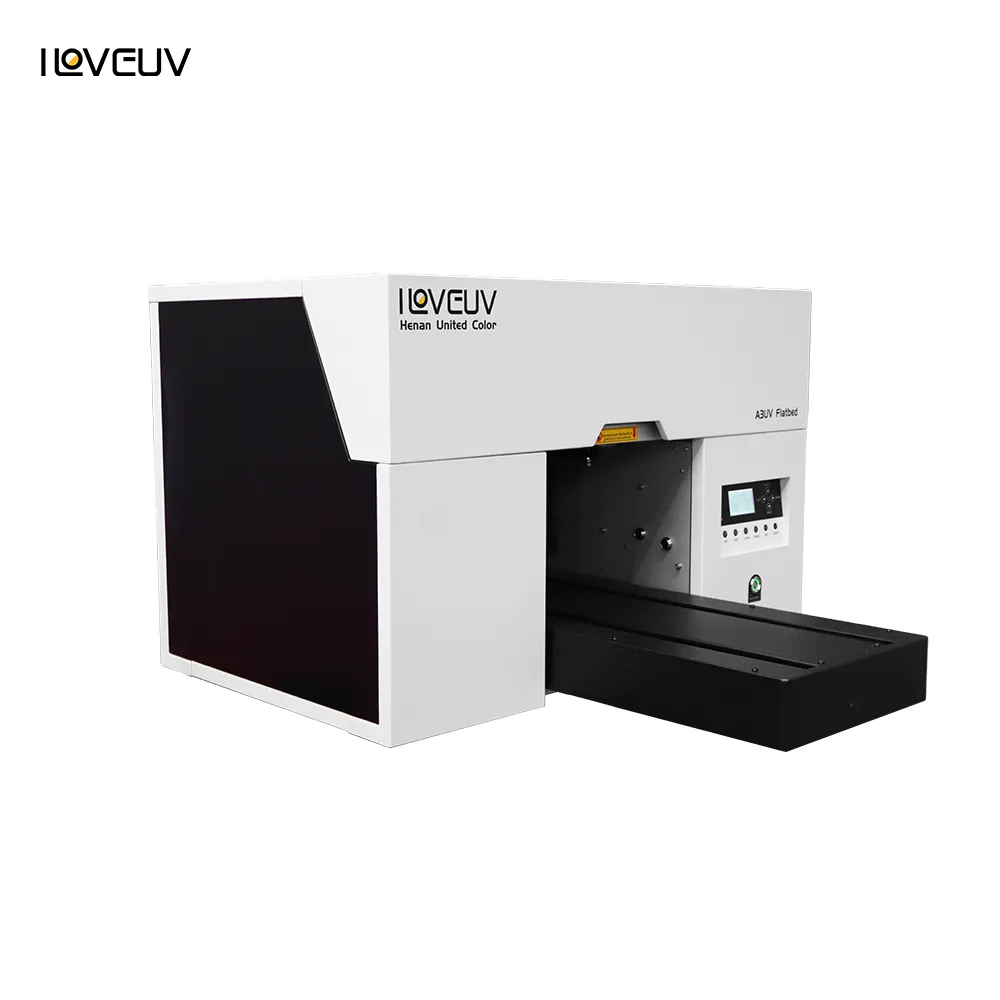

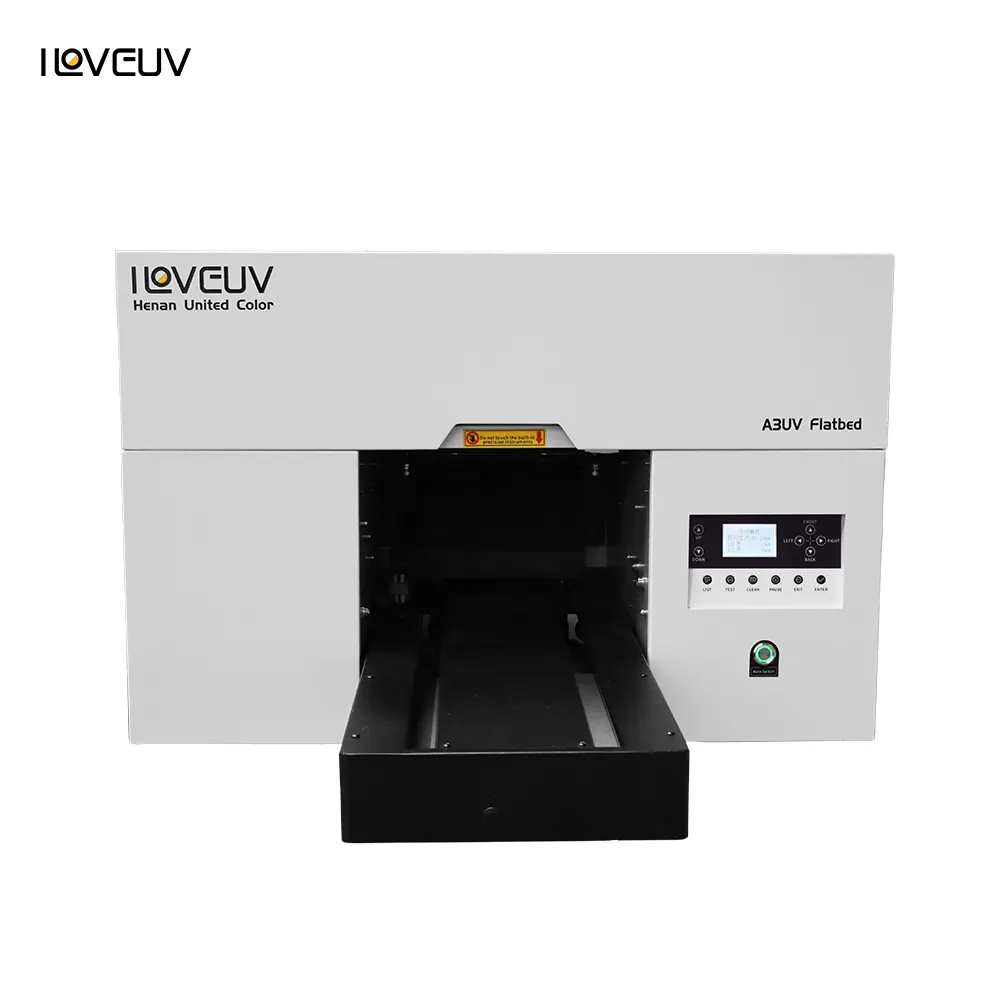

30cm UV Desktop Flatbed Printer
1.All-in-One Desktop Printer for Convenient Placement and Use, Compact Footprint, Easy Operation, and a High-Tech Appearance.
2.60°Angle-mounted printheads result in higher printing efficiency and accuracy.
3.Added Automatic Printing Pause Upon Opening the Print Cap for Enhanced Safety.
4.Software-Initiated Low Ink Warning for Automatic Printing Pauses for a Better User Experience.
5.Full Touchscreen Control Panel for Smarter Operation.
6.Equipped with 1L solid-state ink cartridges for easier waste ink disposal.
7.HIWIN high-speed silent linear guide rail, automatic white ink circulation system.
Product Specifications
| Model | IUV3001 |
| Print head | Epson I3200 - U1/HD |
| Print size | 300mm*470mm |
| Printing height | 900mm |
| Resolution | 3200dpi |
| Ink | UV ink |
| Ink color | C/M/Y/K + White + Varnish |
| RIP software | MainTop,RIIN |
| Media type | Leather, Acrylic, Glass, metal, PVC, PE, etc |
| Power supply | AC220V |
| Speed | 4pass:3m²/h 6pass:1.7m²/h |
| Operation environment | Temperature; 15 - 30℃, humidity:40RH - 60RH |
| Power consume | 4000W |
| Ink supply way | Positive pressure ink supply, white ink stirring |
| Package size | 940mm*735mm*1060mm |
| Weight | 90kg |
| EQUIPMENT SIZE | 860X980X570mm（L*W*H） |
| Camera resolution | 300DPI/600DPI |
| Board | hoson |
| Warranty | One Year (not Include Head And Ink System) |
Machine Details

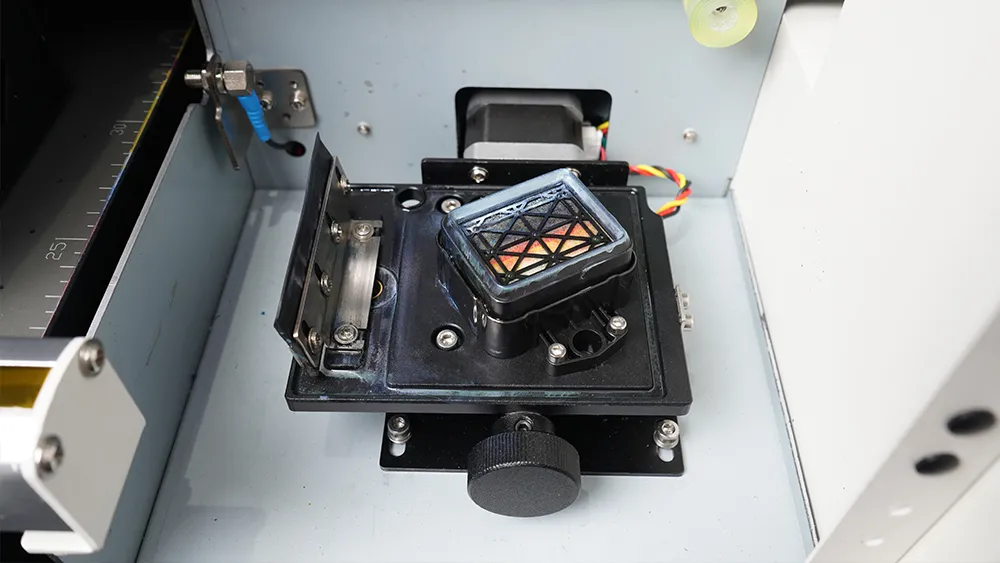

HD Epson i3200 Printheads

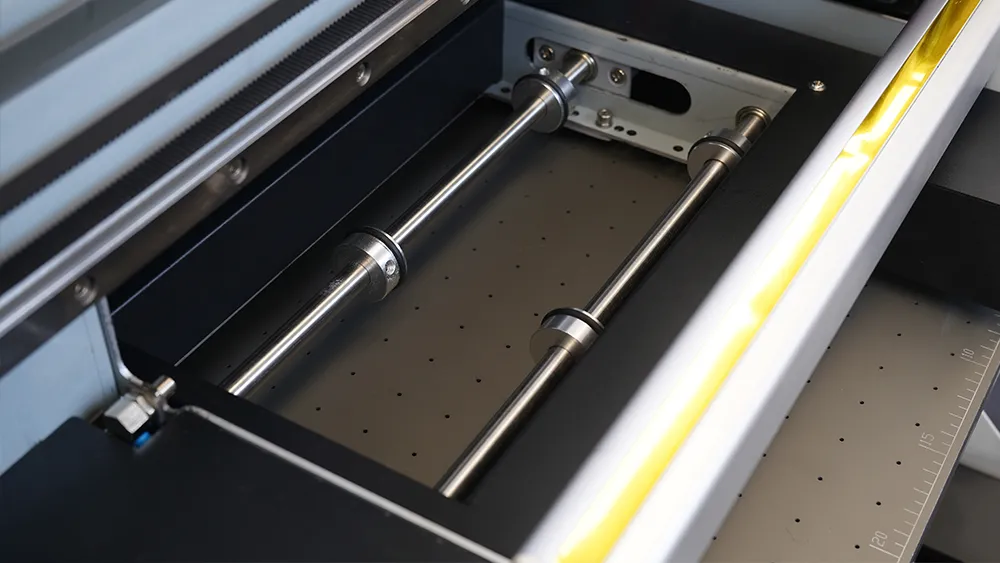

Cylindrical Clamp

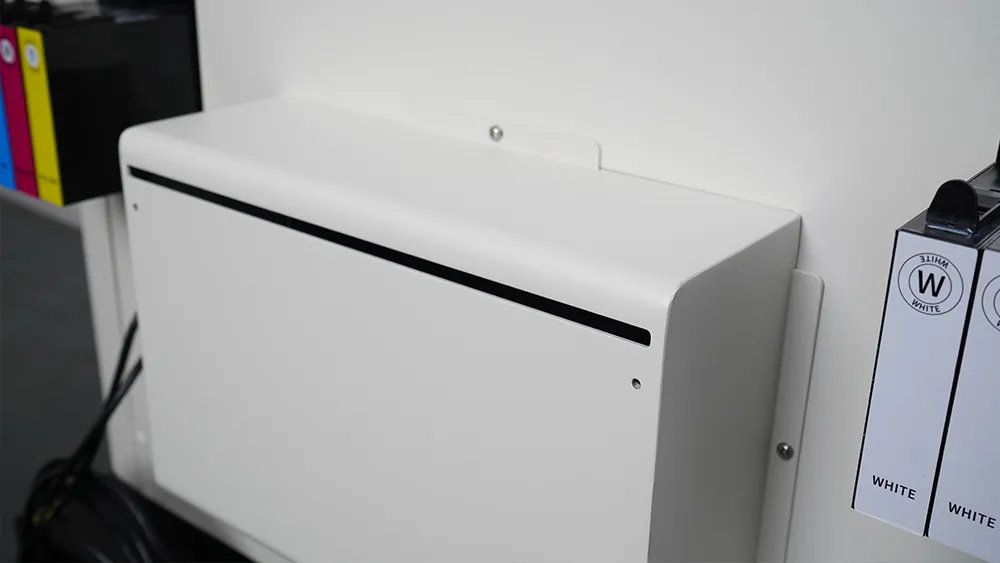

Flexible Material Printing

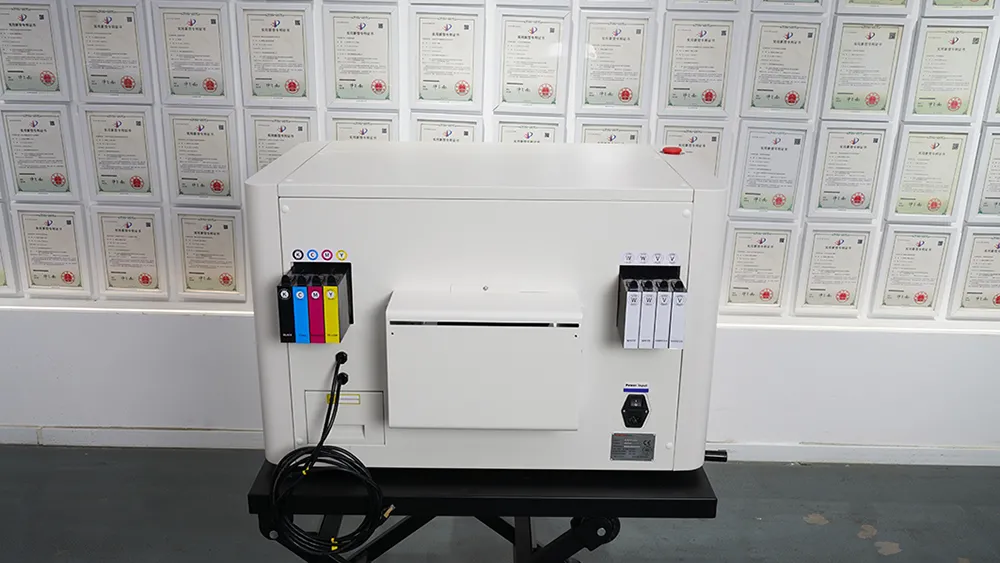

Single-head Multi-color Configuration

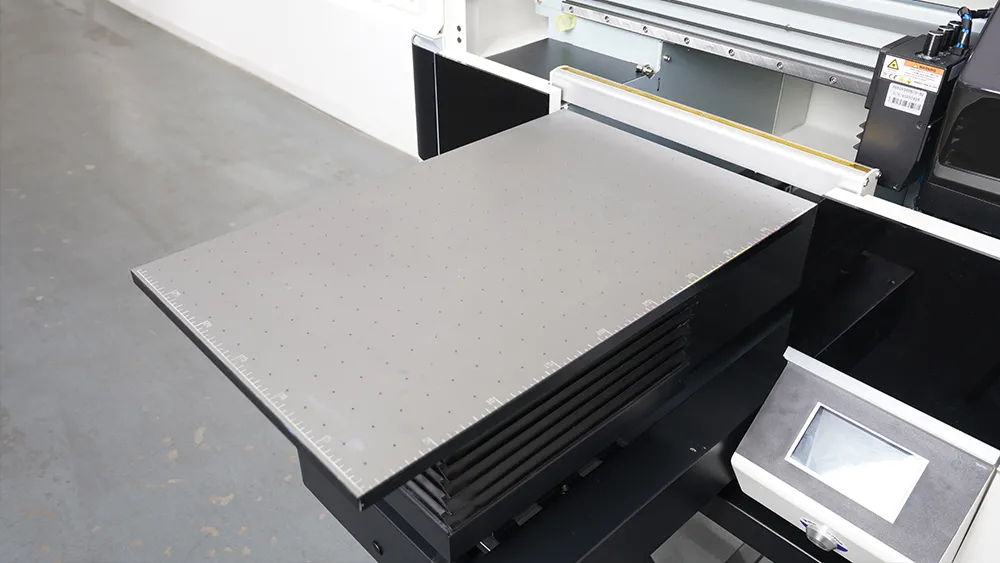

Adjustable Telescopic Lifting Device

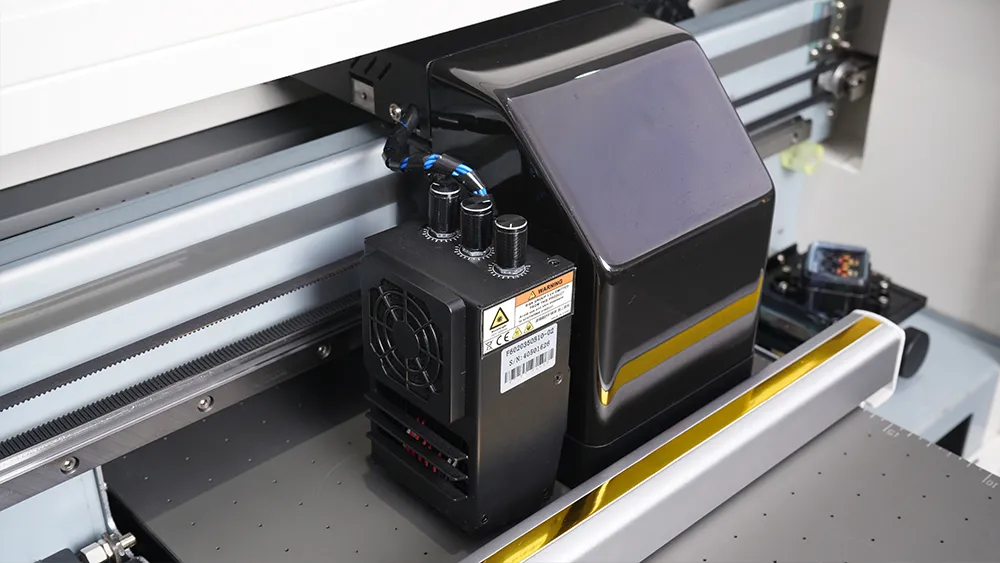

Printhead Protection Device
Application and Effect Display
