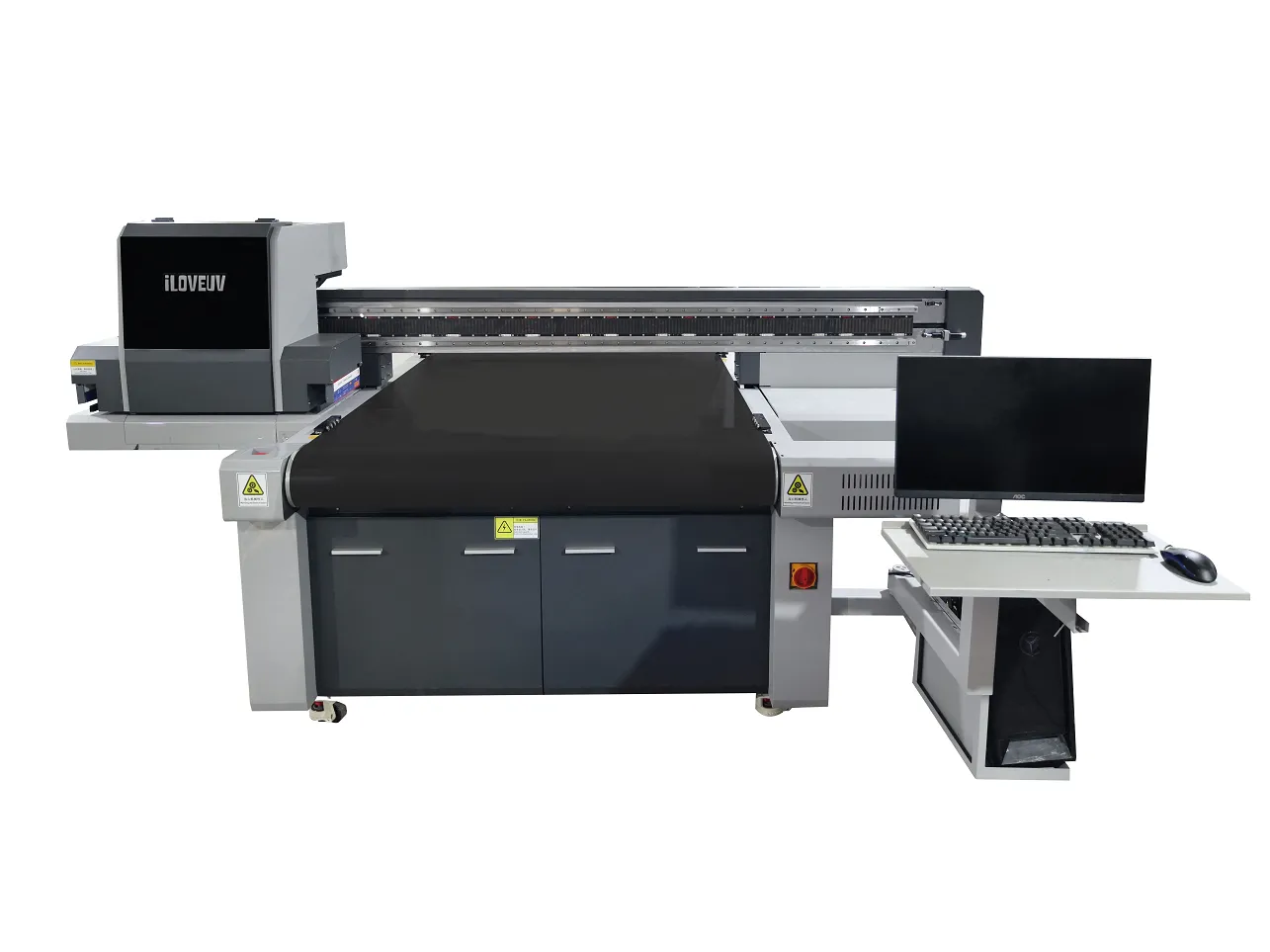

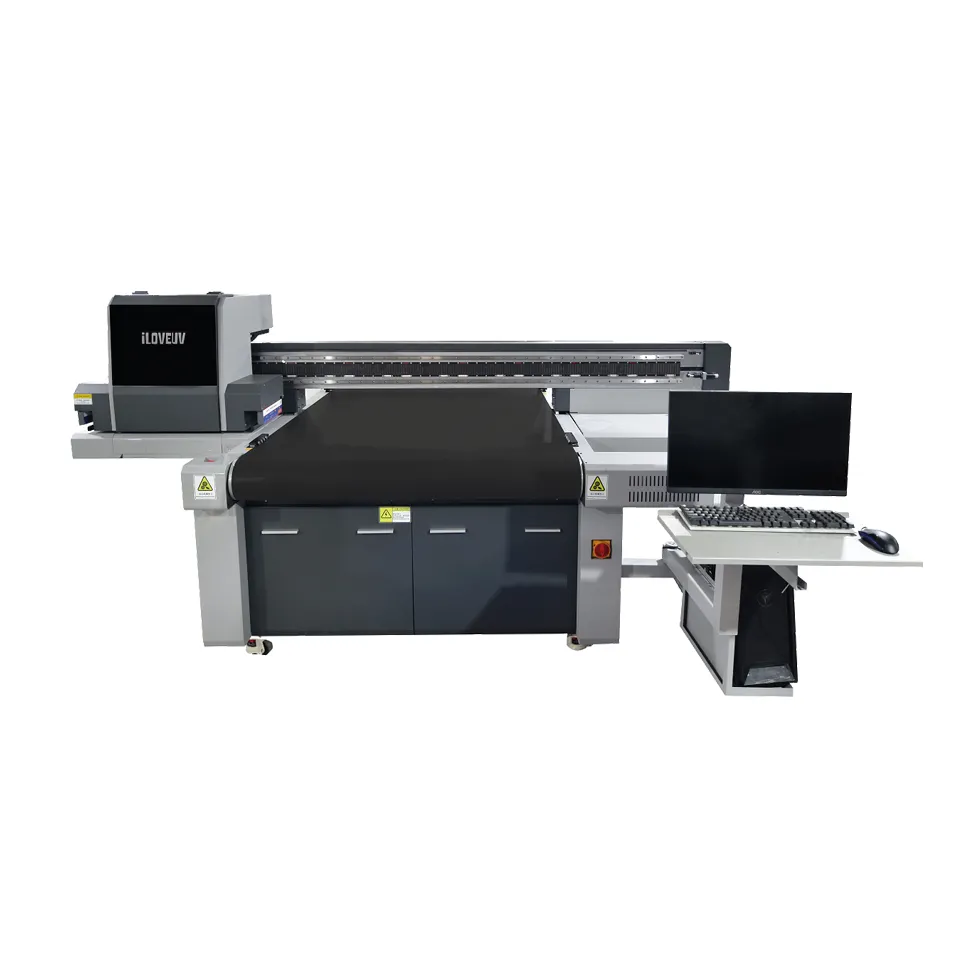

UV Flatbed Printer
UV Vision Conveyor Flatbed Printer
1. Print width: 1.25m
2. Printheads: 2-8 Ricoh G6
3. Ink: UV ink
4. Colors: 6 colors
5. Printing options: Full color, white and color, white and color varnish, white and color varnish with color, color and white varnish with color
6. Printing speed: 7.8㎡/h - 15㎡/h
7. Printing functions: Automatic transfer, visual positioning (camera)
| Features | Specifications |
| PRINTER MODEL | IUV12D01 |
| Board | Hoson |
| PRINTWIDTH | 1250mm |
| PRINT HEAD | Ricoh G6 |
| WORKING ENVIRONMENT | Temperature:18-30°c Humidity: 40-60% |
| PACKAGING WEIGHT | 1356kg |
| PRINT THICKNESS | 10mm |
| SUPPLY VOLTAGE | AC220V |
| POWER | 500w |
| EQUIPMENT SIZE | 3070mm *2200mm*1660mm |
| PACKING SIZE | 3280mm*2260mm*1840mm |
| COLOR SCHEME | W（white）+K/C/M/Y/LC/LM（color)+V（varnish） |
| RIP | Flexiprint/riin |
| SPEED | 4PASS:15㎡/h,6PASS:9.3㎡/h |
Machine Details
