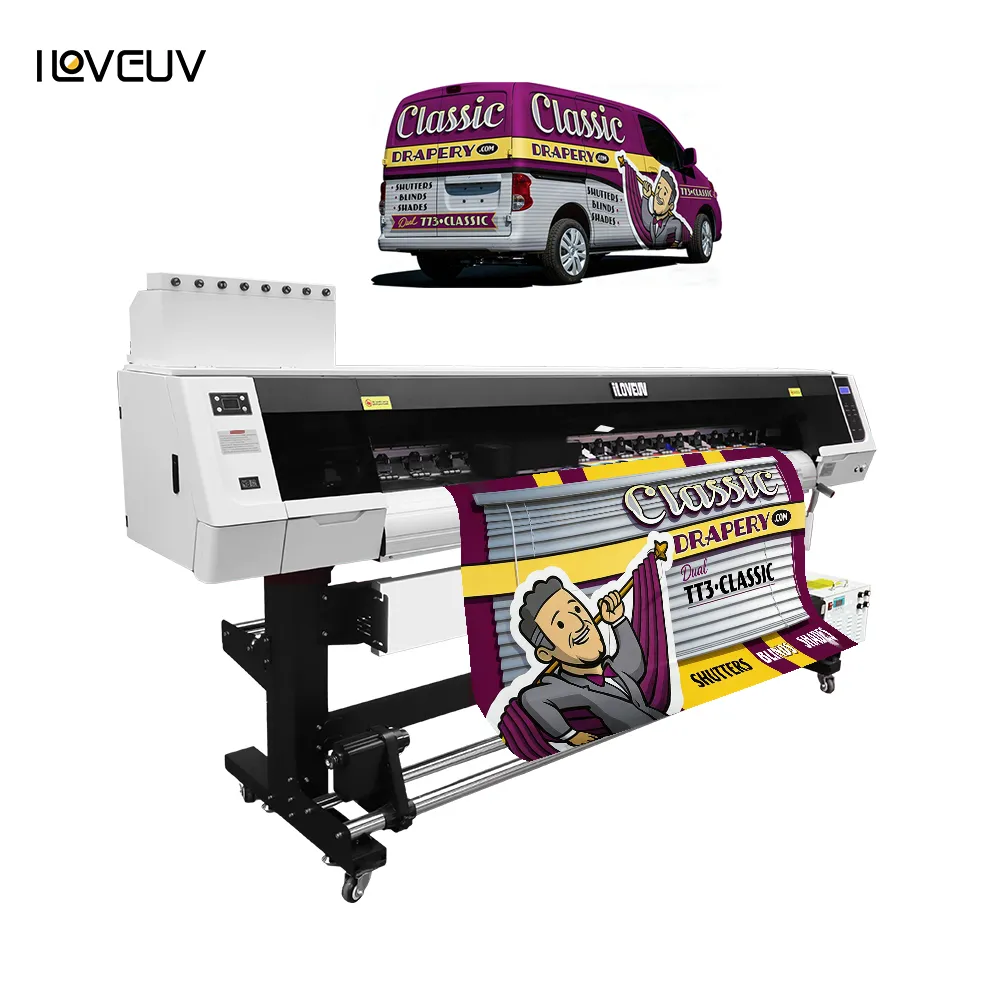

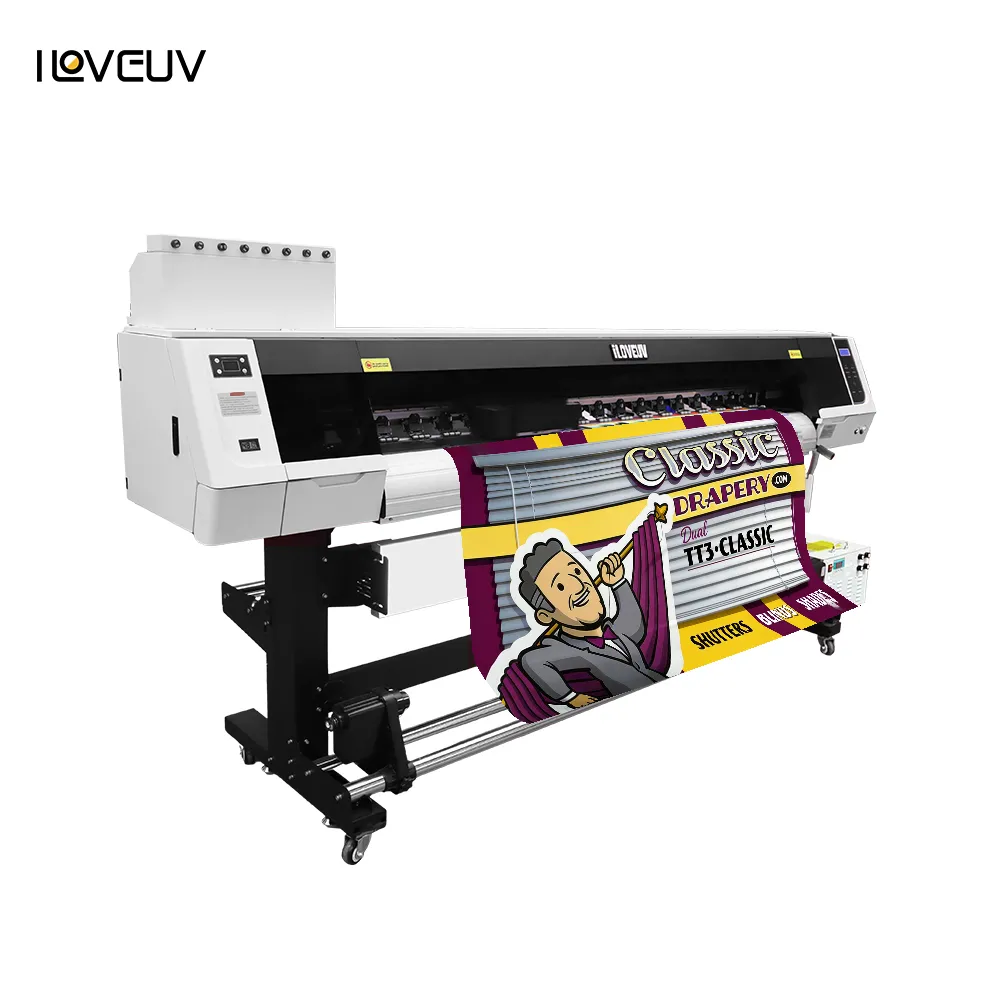

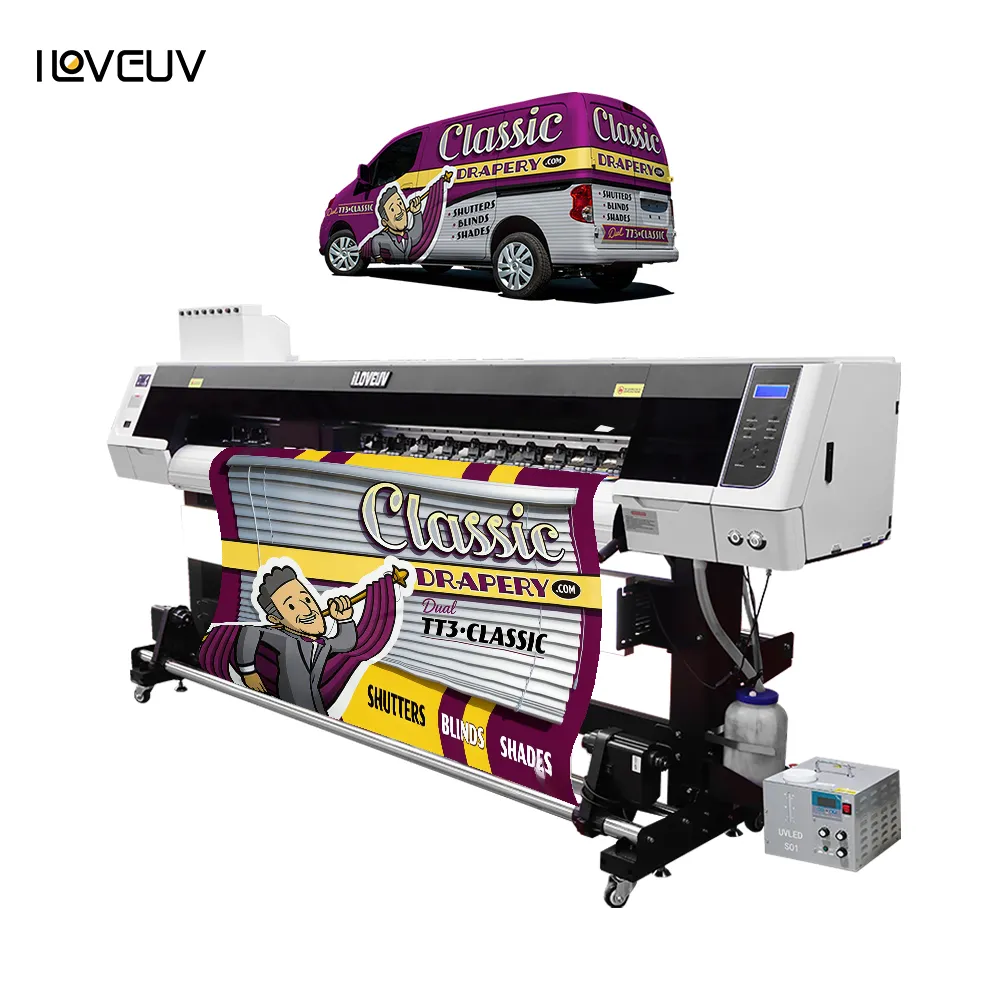

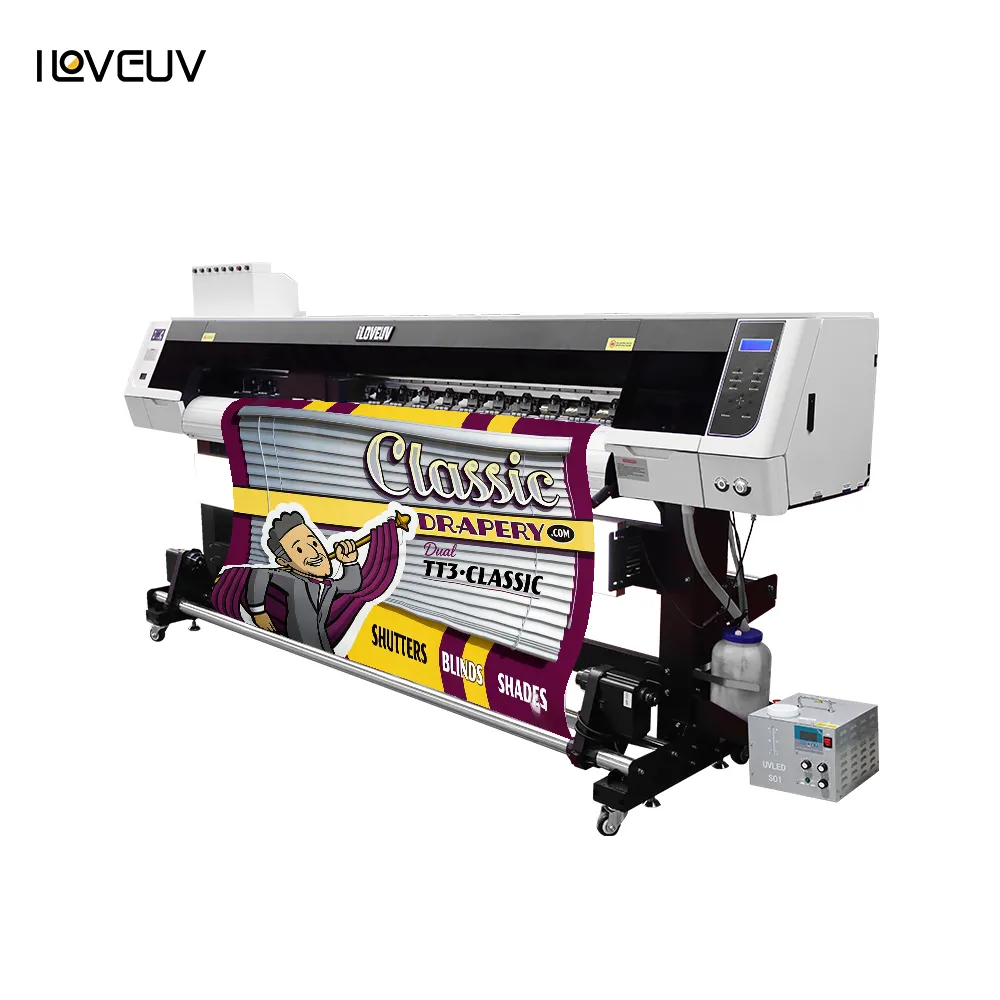

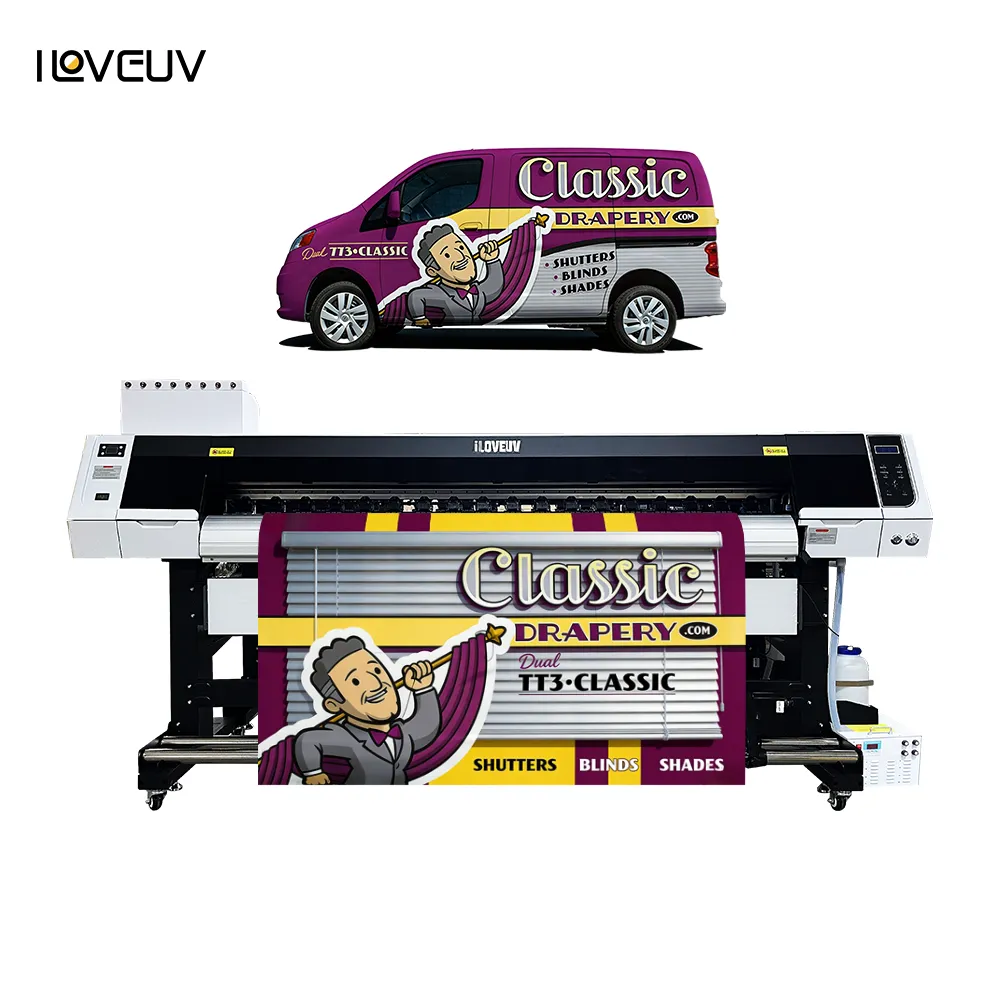

Roll to Roll Printer-IUV2102

1. The printer can print 1850mm width material

2. Advanced all-aluminum alloy ink station

3. Manual rotation to keep moisturizing when power off

4. Intelligent start and stop drying system

5. Large capacity ink supply system

Inquire Now Next Product

Product Specifications

Printer Model	IUV2102
Printwidth	1850mm
Print Head	EPSON i3200-U1/F1080*2 Pcs
Working Environment	Temperature:18-30°C Humidity: 40-60%
Ink Type	CMYK/CMYK+W
Equipment Weight	Net weight 220kg gross weight 290kg
Rip Software	Maintop
Supply Voltage	AC220V
Power	2.7KW
Equipment Size	3033X730X1407mm
Packing Size	3110X770x850mm

Machine Details

Precision paper pressing wheel

The thickened paper pressing wheel effectively ensures the accuracy and stability of printing paper.

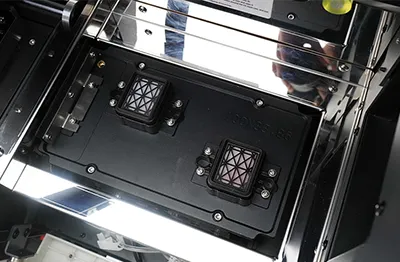

High precision machinery ink station

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the ink flow fluently.

High precision double leadshine servo motor

Industrial motor drive wrinkle free, ensure more accurate material print patterns.

Suction type platform

It can better absorb the material onto the platform, ensure the flatness of the material, improve the smoothness of paper feeding and ensure the stability of printing.

Control panel

Intelligent control panel, real-time observation is simpler and more convenient, and operation is more efficient.

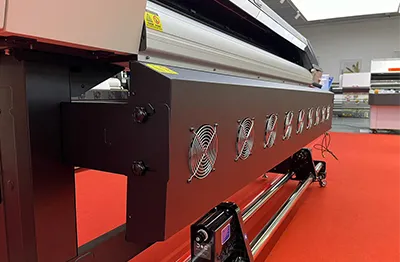

High-power intelligent drying system

The heating and drying system can automatically adapt to different outdoor and indoor drying conditions to ensure that the ink can be dried immediately when printing at high speed.

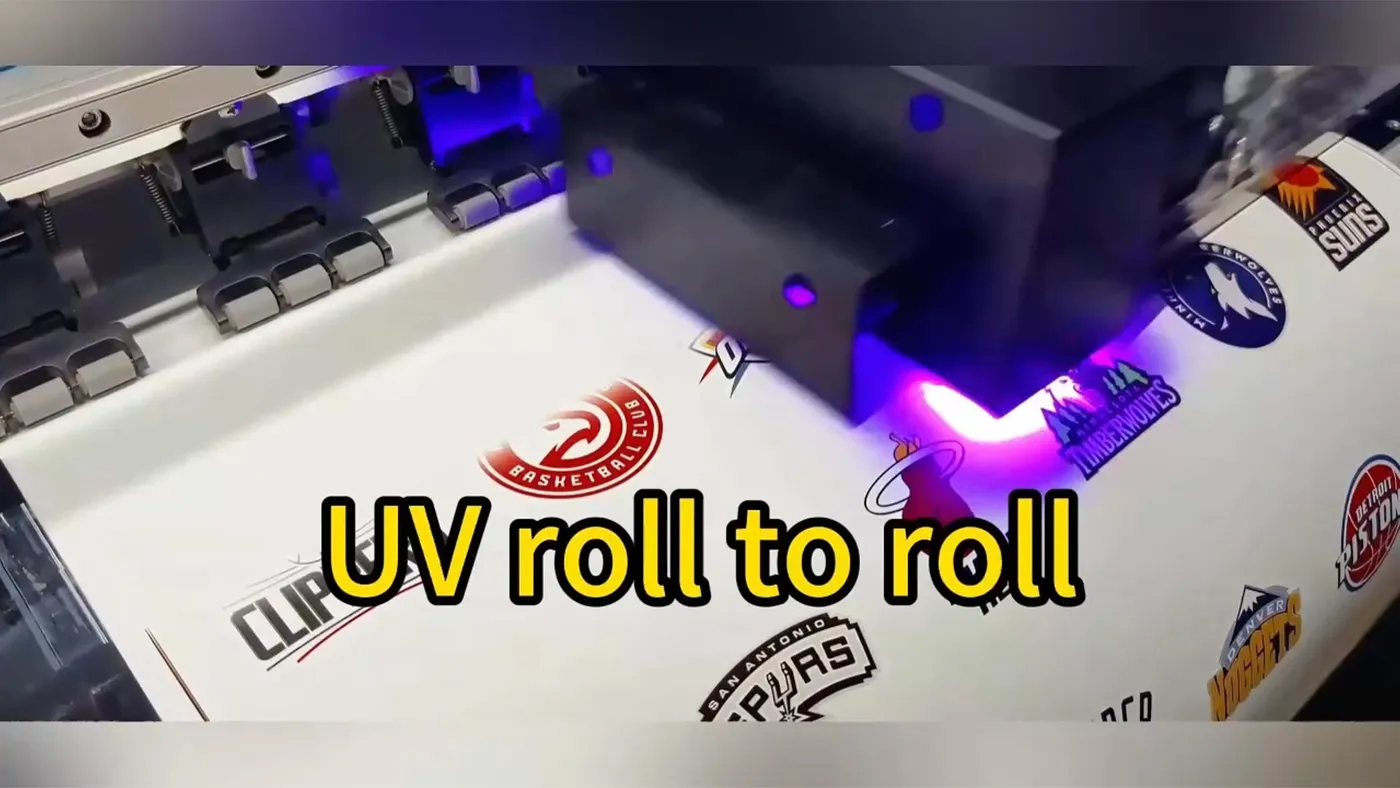

Application and Effect Display
