Roll to Roll UV Printer

Roll to Roll UV Printer

Home ProductsRoll to Roll UV PrinterRoll to Roll Printer-IUV3200-2

Roll to Roll Printer-IUV3200-2

Roll to Roll Printer-IUV3200-2

Roll to Roll Printer-IUV3200-2

Roll to Roll Printer-IUV3200-2

Roll to Roll Printer-IUV3200-2

Roll to Roll Printer-IUV3200-2

Roll to Roll Printer-IUV3200-2

Roll to Roll Printer-IUV3200-2

Roll to Roll Printer-IUV3200-2

Roll to Roll Printer-IUV3200-2

Roll to Roll Printer-IUV3200-2

1. Simple structure for easy installation & maintenance

2. Original imported print head, HD image quality & assurance

3. Intelligent temperature control panel, better printing color

4. Strict control over machine production details

Share:

Inquire Now Next Product

Product Specifications

Printer Model	IUV3200-2
Rip Software	Maintop
Print Width	3200mm
Supply Voltage	AC220V
Printer Head	EPSON i3200 - U1/F1080*2
Power	9.4KW
Working Environment	Temperature:18 - 30℃ ；Humidity: 40 - 60%
Equipment Size	4395X874X1475mm
Ink Type	UV ink
Packing Size	4490X950X1700mm
Equipment Weight	Net weight 640kg；gross weight 720kg

Machine Details

Precision paper pressing wheel

Precision paper pressing wheel

The thickened paper pressing wheel effectively ensures the accuracy and stability of printing paper.

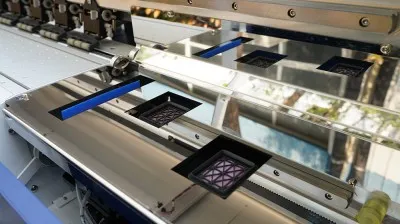

Advanced capping station

Advanced capping station

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the ink flow fluently.

Suction type platform

Suction type platform

It can better absorb the material onto the platform, ensure the flatness of the material, improve the smoothness of paper feeding and ensure the stability of printing.

High-power intelligent drying system

High-power intelligent drying system

The heating and drying system can automatically adapt to different outdoor and indoor drying conditions to ensure that the ink can be dried immediately when printing at high speed.

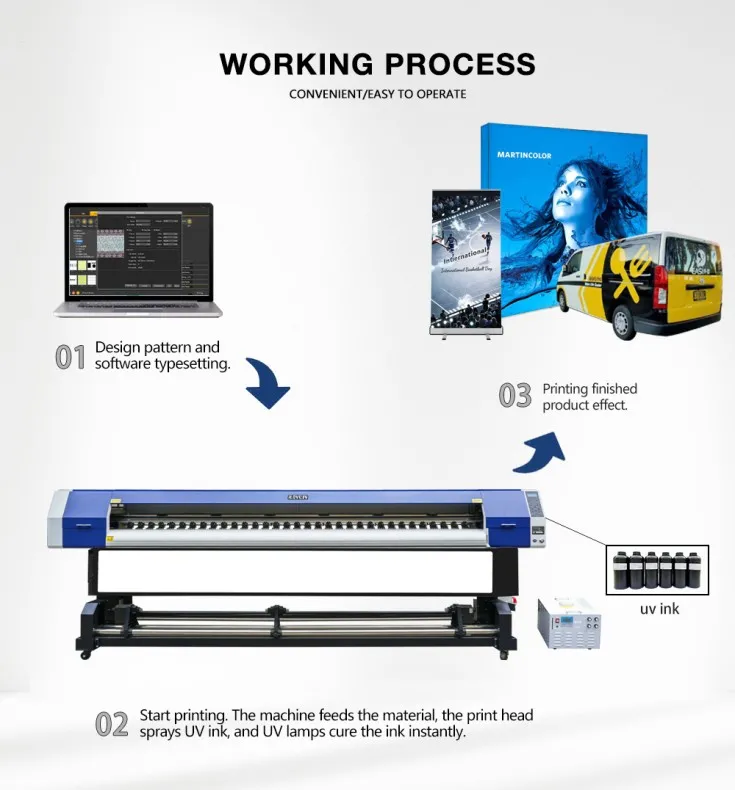

Working Process

Step 01

Design pattern and software typesetting.

Step 02

Start printing. The machine feeds the material, the print head sprays UV ink, and UV lamps cure the ink instantly.

Step 03

Printing finished product effect.

Application and Effect Display
